AC & DC Geared Motor

DKM AC small geared motor was developed first in Korea in 1987 and has been used in a good reputation throughout the whole areas of domestic/overseas industry up to know. Our AC small geared motor having passed the certification such as CE, CCC, ISO etc. is proud of various and wide range of specification which satisfies various electrical requirements from all over the world.



Induction Motor

  • Constant speed with continuous operation
  • Stop in 2 sec. when switched off
  • Overrun: 30-40 times
  • Possible for reverse rotation

Reversible Motor

  • Suitable for frequent reverse operation
  • Stop in 0.5 sec. when switched off
  • Overrun: 5-6 times
  • Possible for reverse rotation

Electromagnetic Brake Motor

  • Suitable for operation where load should be maintained -
  • Stop in 0.2 sec. when switched off
  • Overrun: 2-3 times
  • Possible for reverse rotation

Clutch & Brake Motor

  • Suitable for high frequent start and stop operation
  • Stop in 0.1 sec. when switched off
  • Overrun: 1 time
  • Possible for reverse rotation

2 Pole Motor

  • High speed rotation
  • 3,600 RPM (60Hz)
  • 3,000 RPM (50Hz)
  • Used without gearhead
  • Possible for reverse rotation

Torque Motor

  • Suitable for controlling tension and pushing in winding operations
  • Possible for reverse rotation

Speed Control Motor

  • Easy control of motor speed
  • Line-up: Speed Control Induction Motor, Speed Control Reversible Motor, Speed Control Brake Motor, Speed Control, Clutch & Brake Motor

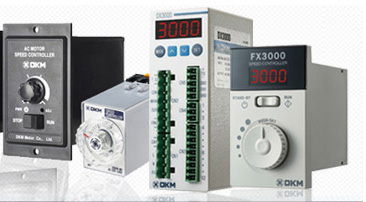

Speed Controller

  • Connected to speed control motor by extension cable
  • FX3000: Digital Speed Controller
  • DX3000: Digital Torque Controller
  • DSA: Unit Type Speed Controller
  • DSKM: Rail Type Speed Controller
